Stateless Transformations

The Stateless Transformation feature lets you reshape event payloads on the fly using expression-based mappings.
It is called stateless because each event is transformed independently, without relying on any stored state or history.

Use stateless transformations when you need to:

• Normalize fields (e.g., parse URLs, user agents, or timestamps)
• Derive new fields from existing ones
• Clean up or reformat data before it lands in ClickHouse
• Map nested JSON structures into a flat schema

How It Works

Internally, stateless transformations are powered by the expr expression engine and a set of custom helper functions. Each transformation defines:

• expression: how to compute the new value, using the input JSON as context
• output_name: the resulting field name in the transformed payload
• output_type: the expected type of the result (e.g., string, int, float, bool)

Internal Process

1. Input Parsing: The original Kafka event is parsed as a JSON object (map[string]any).
2. Expression Evaluation:
   For each configured transformation, GlassFlow evaluates the expression against the input object.
3. Type Conversion:
   The result of the expression is converted to the configured output_type (string, int, float64, bool, or []string).
4. Output Assembly:
   All transformed fields are collected into a new JSON object keyed by output_name.
5. Downstream Processing:
   The transformed JSON is then used for schema mapping and written to ClickHouse.

If no stateless transformations are configured, the input JSON is passed through unchanged.

Expression Context

Inside an expression, you can reference any field from the input JSON by its name, for example:

• url, user_agent, status, age
• Nested fields using dot notation, e.g. user.id, payload.metadata.referrer

The expression engine is type-aware and supports arithmetic, string operations, conditionals, and logical operators.

Transformation Expressions

Stateless transformations are evaluated using the expr  expression language. Expr is a simple, type-aware expression engine that supports literals, variables, operators, and a rich set of built-in functions. Your transformation expressions run on this engine, so you can use the full expr syntax—including arithmetic, comparison, logical and string operators, optional chaining, and predicates—in addition to the GlassFlow-specific helpers described below.

Expression Operators

The following operators are available in expressions (from the expr language definition ):

Functions

In addition to standard expr operators, GlassFlow provides helper functions useful for web / event data pipelines.
Use them directly in expressions, e.g. upper(status), parseUserAgent(user_agent, "device").

Each function is listed below with a short description and an example showing expression → output.

parseQuery

Parses a URL query string into a map of key/value pairs. Useful for deriving fields from ?key=value&foo=bar-style strings.

getQueryParam

Return the value of a specific query parameter from a query string.

urlDecode

URL-decodes an encoded string (e.g. %20 → space, %2B → +).

parseISO8601

Parses common ISO-8601 timestamp strings and returns a Unix timestamp in seconds. Supports formats such as 2006-01-02T15:04:05Z and 2006-01-02 15:04:05.000000.

toDate

Converts a Unix timestamp (seconds) or a time.Time value into a YYYY-MM-DD date string.

parseUserAgent

Extracts structured information from a user agent string. The second argument must be one of: "device", "browser", or "os".

Example user_agent value used below:
Mozilla/5.0 (Linux; Android 10; SM-G973F) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/91.0.4472.120 Mobile Safari/537.36

containsStr

Returns whether the first string contains the second string (substring check).

hasPrefix

Returns whether the first string starts with the second string.

hasSuffix

Returns whether the first string ends with the second string.

upper

Converts a string to uppercase.

lower

Converts a string to lowercase.

trim

Trims leading and trailing whitespace from a string.

split

Splits a string by a separator and returns an array of strings.

join

Joins an array of values into a single string using the given separator. The first argument must be an array (e.g. the result of split).

replace

Replaces all occurrences of a substring with another string.

toInt

Converts a value to an integer. Returns 0 for empty or invalid input.

toFloat

Converts a value to a float. Returns 0.0 for empty or invalid input.

toString

Converts a value to a string. Returns "" for empty input.

keys

Returns all keys of a JSON object (map), sorted alphabetically.

waterfall

Returns the first non-empty value from a list of candidates. Accepts either multiple arguments or a single array. Useful for fallbacks (e.g. prefer utm_source, then source, then "direct").

extractPathType

Maps a known path to a request type. Recognized paths: /g/collect → "collect", /_/set_cookie → "set_cookie"; any other path → "unknown".

hasKeyPrefix

Returns whether any key in the given map starts with one of the given prefixes. First argument: map (object); second: array of prefix strings.

hasAnyKey

Returns whether the given map has at least one of the given keys. First argument: map; second: array of key names.

Configuration

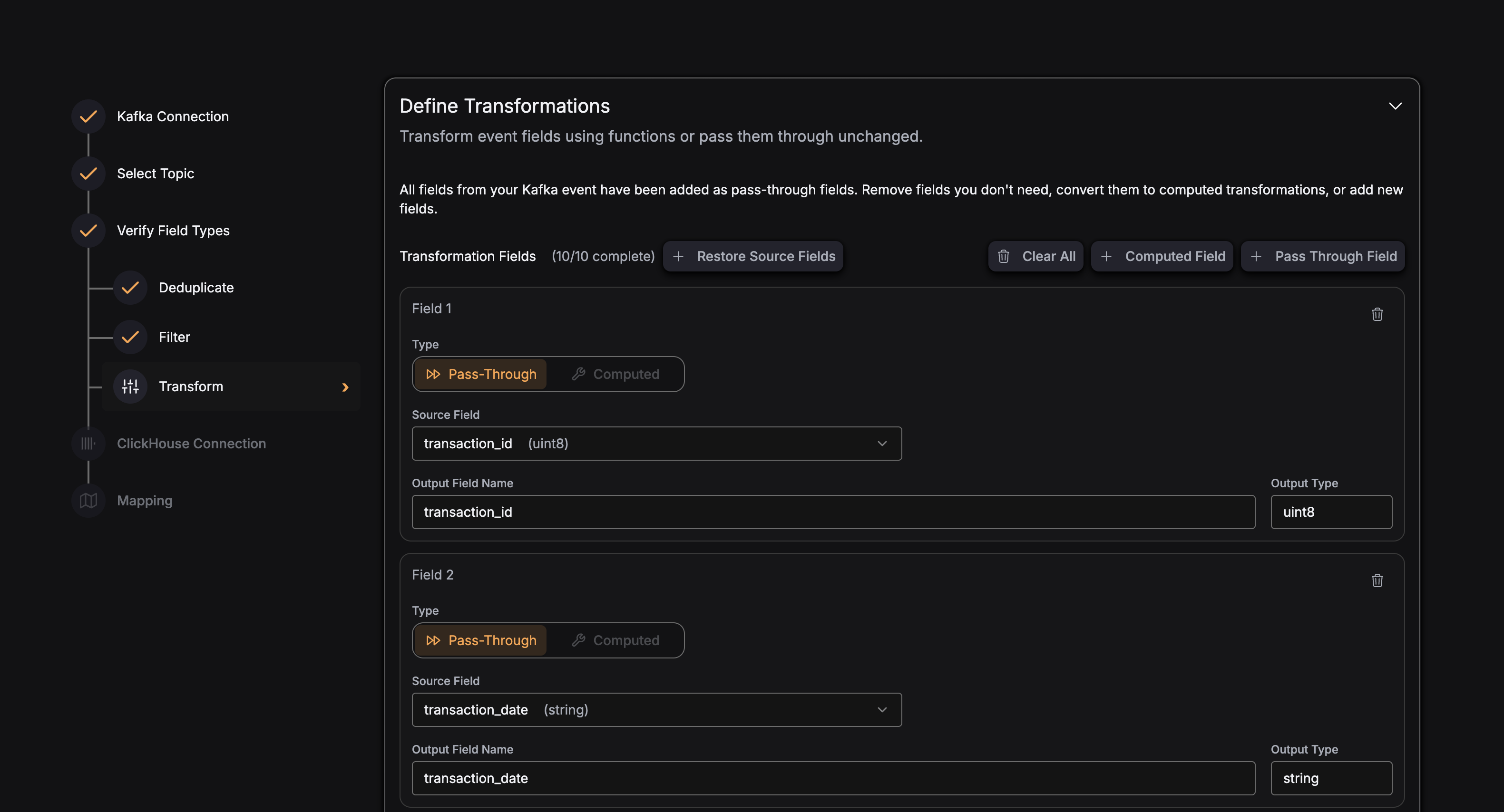

Stateless transformations are configured as part of the pipeline’s transformation section.

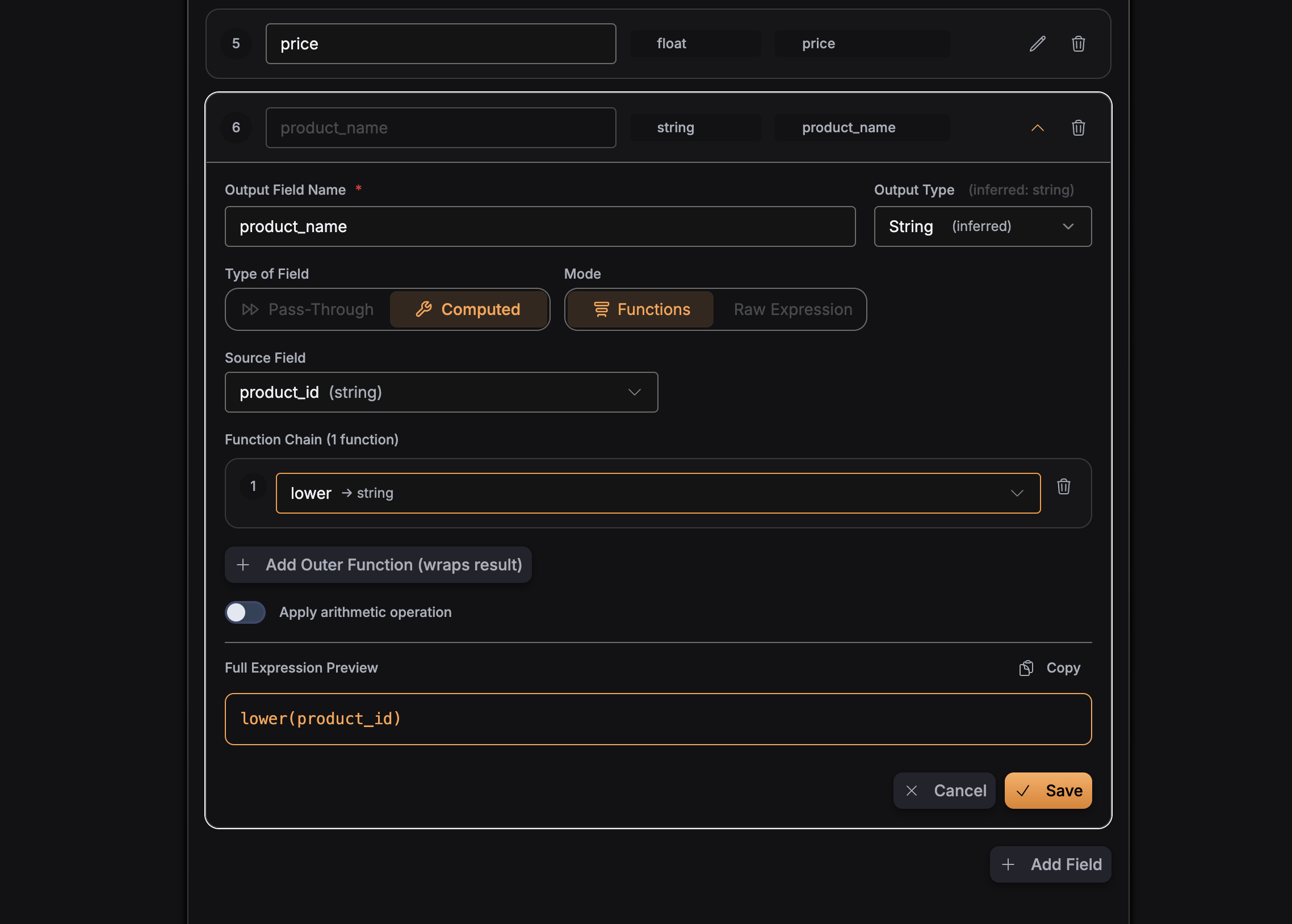

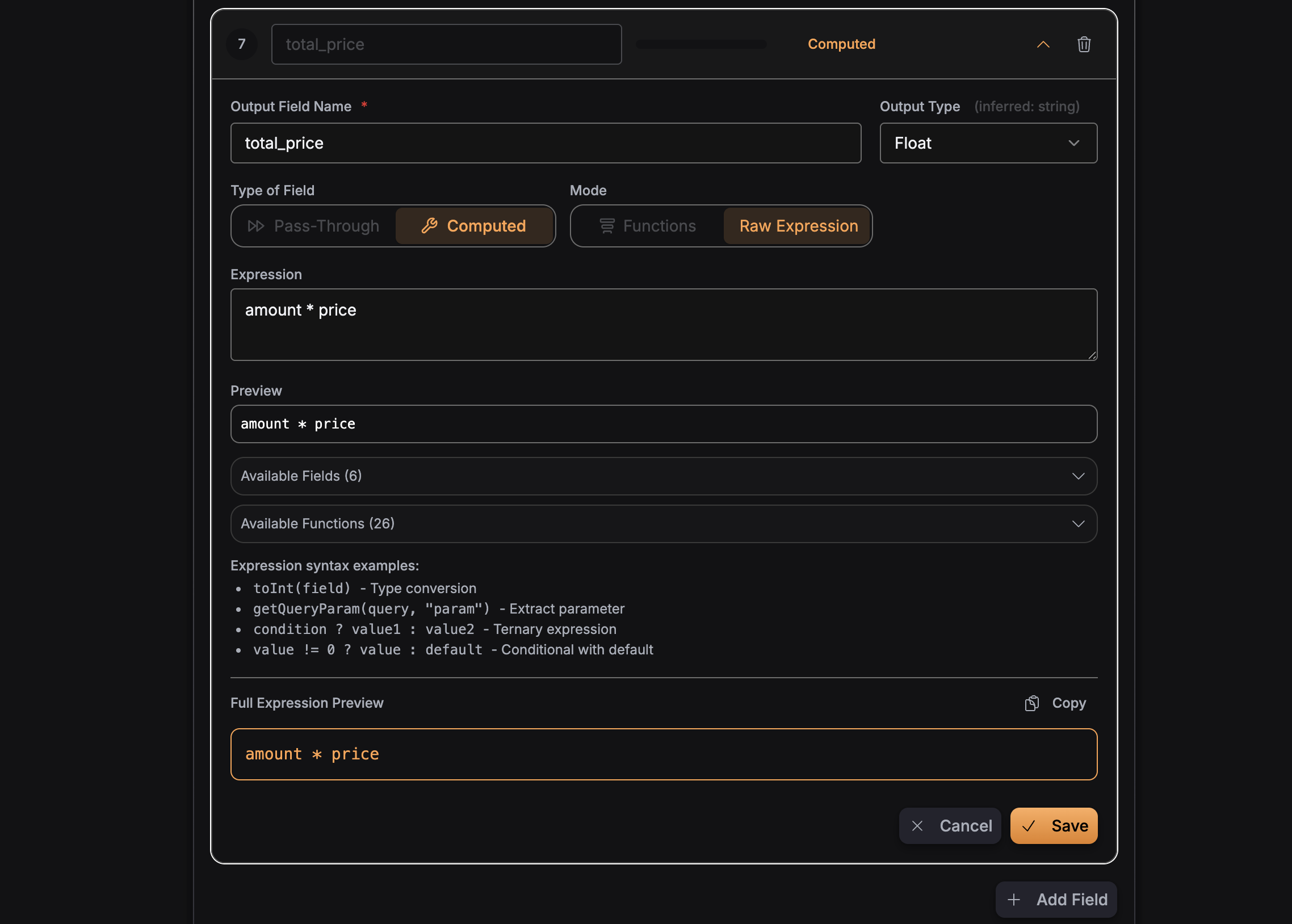

They are typically surfaced through the UI as derived fields or expression-based mappings.

Configuration Structure

Examples

Here’s a complete example of a pipeline with stateless transformation enabled.

Scenario: Web events with optional timestamp, path, and request_time. We derive an event date, a path-based category, and request time in microseconds.

{
  "version": "v2",
  "pipeline_id": "events-with-transform",
  "name": "Web Events with Stateless Transformation",
  "source": {
    "type": "kafka",
    "connection_params": {
      ...
    },
    "topics": [
      {
        "name": "events",
        "consumer_group_initial_offset": "latest",
        "replicas": 1
      }
    ]
  },
  "stateless_transformation": {
    "enabled": true,
    "id": "transform",
    "type": "expr_lang_transform",
    "config": {
      "transform": [
        {
          "expression": "toDate(parseISO8601(timestamp ?? ''))",
          "output_name": "event_date",
          "output_type": "string"
        },
        {
          "expression": "extractPathType(path ?? '') == 'collect' ? 'event' : 'other'",
          "output_name": "event_category",
          "output_type": "string"
        },
        {
          "expression": "toInt(toFloat(request_time ?? 0) * 1000000)",
          "output_name": "request_time_usec",
          "output_type": "uint"
        }
      ]
    }
  },
  "schema": {
    "fields": [
      {
        "source_id": "transform",
        "name": "event_date",
        "type": "string"
      },
      {
        "source_id": "transform",
        "name": "event_category",
        "type": "string"
      },
      {
        "source_id": "transform",
        "name": "request_time_usec",
        "type": "uint"
      }
    ]
  },
  "sink": {
    "type": "clickhouse",
    ...
  }
}

• event_date — Custom helpers parseISO8601 and toDate turn an ISO-8601 timestamp into a YYYY-MM-DD string; timestamp ?? '' avoids errors when the field is missing (expr nil coalescing ).
• event_category — extractPathType plus expr ternary : paths like /g/collect become "event", everything else "other".
• request_time_usec — toFloat converts request_time to a float, then multiplies by 1,000,000 to get microseconds; toInt converts the result to an integer.

Best Practices

• Keep expressions focused:
  Prefer several small, clear transformations over one very complex expression.
• Validate transformations with sample data:
  Use the UI or SDK evaluation helpers (where available) to test expressions before deploying.
• Align output_type with ClickHouse schema:
  Make sure the type you choose matches the target ClickHouse column type to avoid conversion errors.
• Use helpers for common patterns:
  Offload parsing and normalization (timestamps, user agents, query strings) to the provided helper functions instead of re-implementing logic inside expressions.
